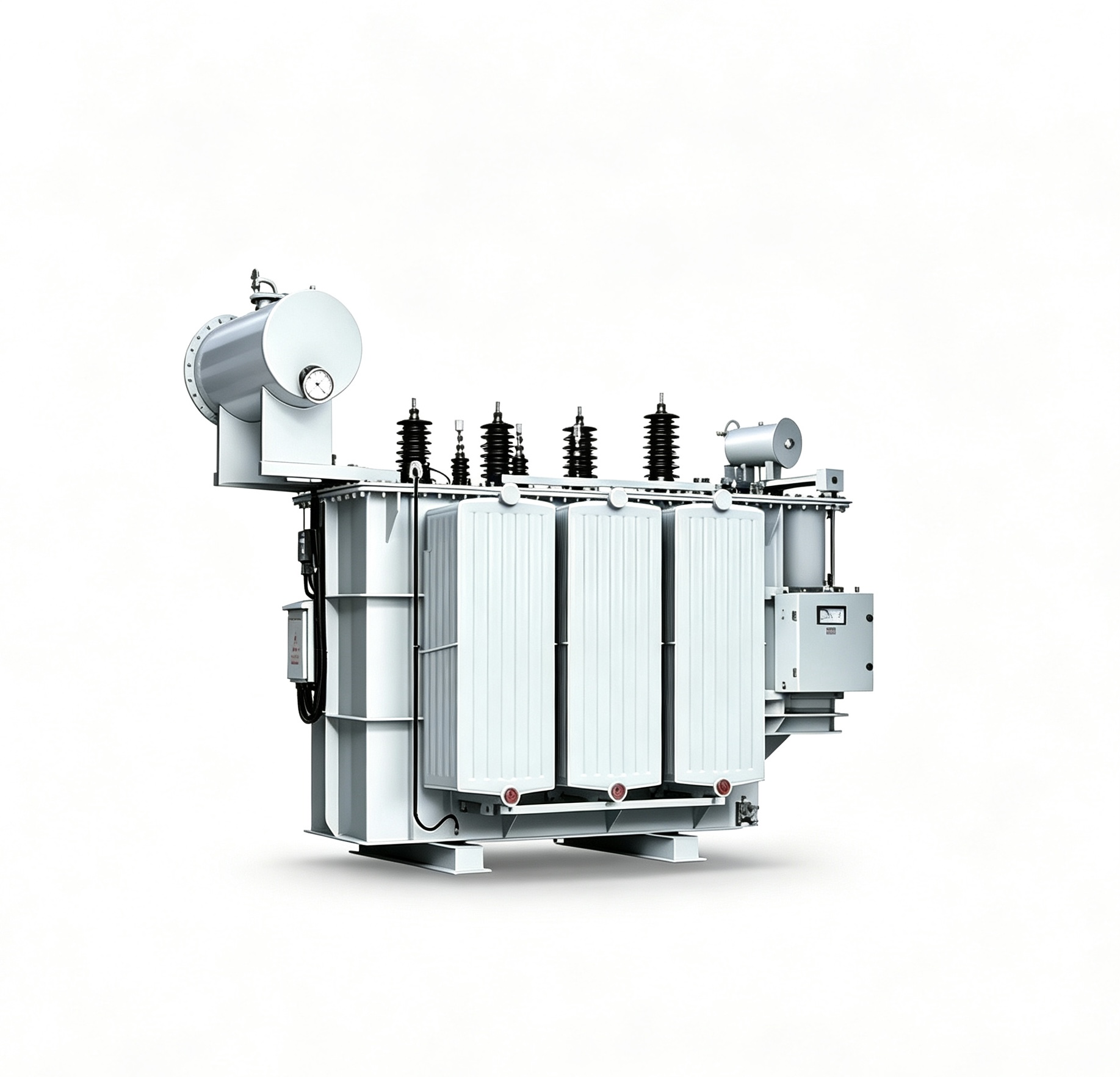

Product Overview
The three-phase oil-immersed distribution transformers manufactured by our
company feature anew insulation structure in the core, which enhances short
circuit resistance; the core is made from high-quality cold-rolled silicon steel
laminations; the high-voltage windings are all constructed using high-quality
oxygen-free copper wire in a multi-layer circular configuration; and all
fasteners undergo special anti-loosening treatment.
The product is characterised by high efficiency and low losses, enabling
significant savings in electricity consumption and operating costs, with
notable social benefits; it is a high-techproduct promoted by the st
Performance and Technical Specifications
● Product Standards: GB/T 1094-2013
● GB 6450-2015
● Rated High Voltage: 35, 36.5, 38 kV
● Rated Low Voltage: 0.4 kV
● Connection Group: Dyn11 or Yyn0
● High-voltage tap range: ±5% or ±2×2.5%.
● Insulation Class: L175AC35/L10AC5.
● Frequency: 50 Hz
Key Technical Specifications

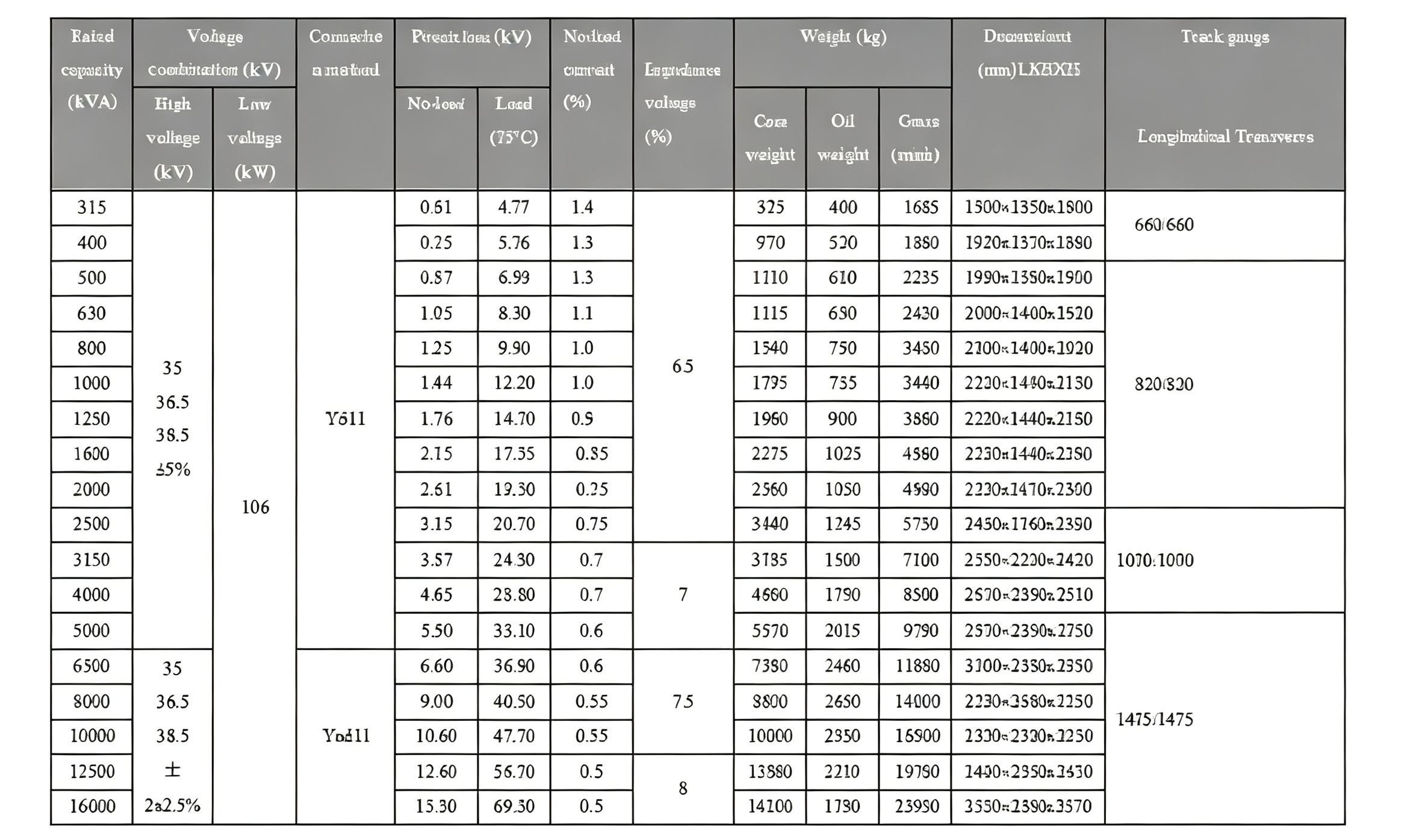

Technical Specifications for the 35 kV S11 and S13 Series Distribution Transformers
