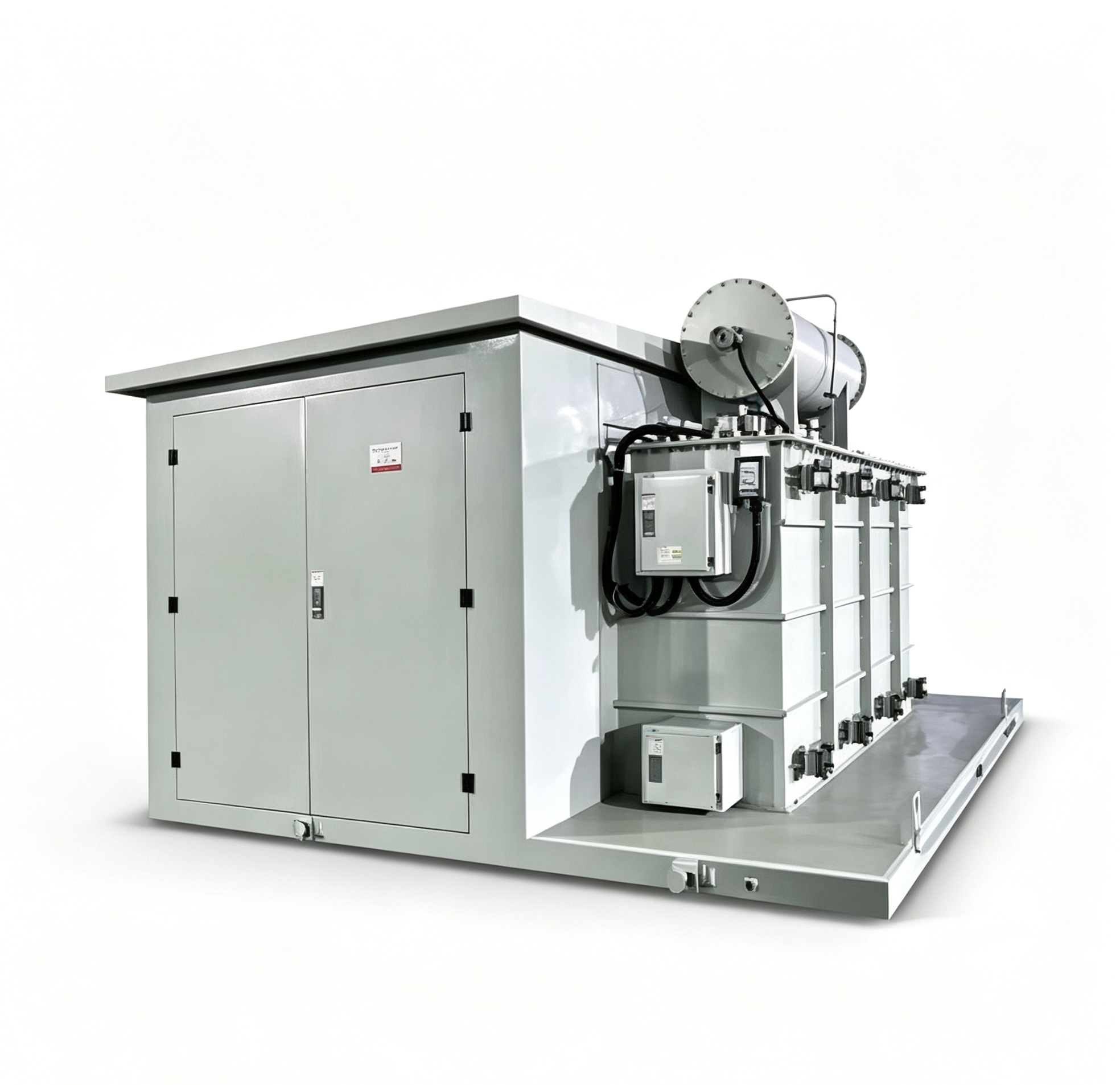

roduct Overview
The 35 kV photovoltaic substation is a product developed by our company by integrating advanced domestic and international technologies and
expertise. It utilizes solar photovoltaic conversion technology to serve as a backup power source. It converts the 690 V electrical energy generated by
photovoltaic generators
into 35 kV or 10 kV via a step-up transformer, feeding it into the utility grid or to end-users, thereby fulfilling the mission of photovoltaic power
generation. The enclosure houses an automatic dual-power-source (solar/grid) switching device, a transformer, and circuit breakers. The solar cells are
connected to the solar panels and the input of the DC-to-AC inverter, respectively. The output of the DC-to-AC inverter is connected to the input of the
automatic dual-power-source switching device, which is connected to the utility power supply via circuit breakers and a transformer. This is an outdoor
unit for the 10kV distribution system that integrates primary and secondary systems. It achieves the “four modernizations” of the container-type
substation: integration of primary and secondary systems, modular assembly, factory-based construction, and simplified installation.
This product is suitable for various photovoltaic power generation sites and serves as the optimal supporting product for photovoltaic power generation
systems. The product complies with standards such as GB/T 17467 “High and Low Voltage Prefabricated Substations” and DL/T 537“Technical
Specifications for Ordering 6-5kV Containerized Substations.”

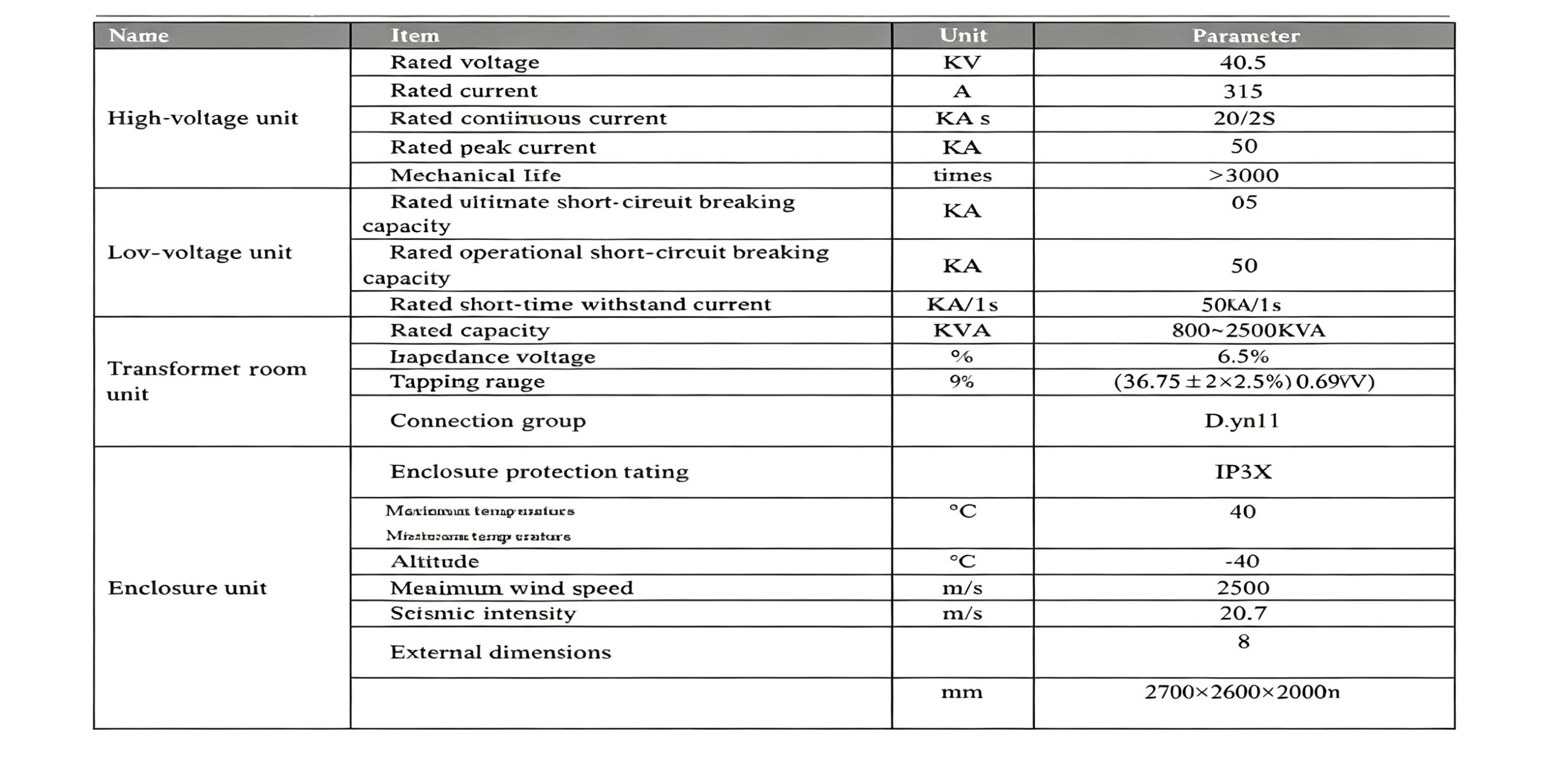

Key Technical Specifications
